SKU: DT-235F-16W-TC-DIM-WH
About

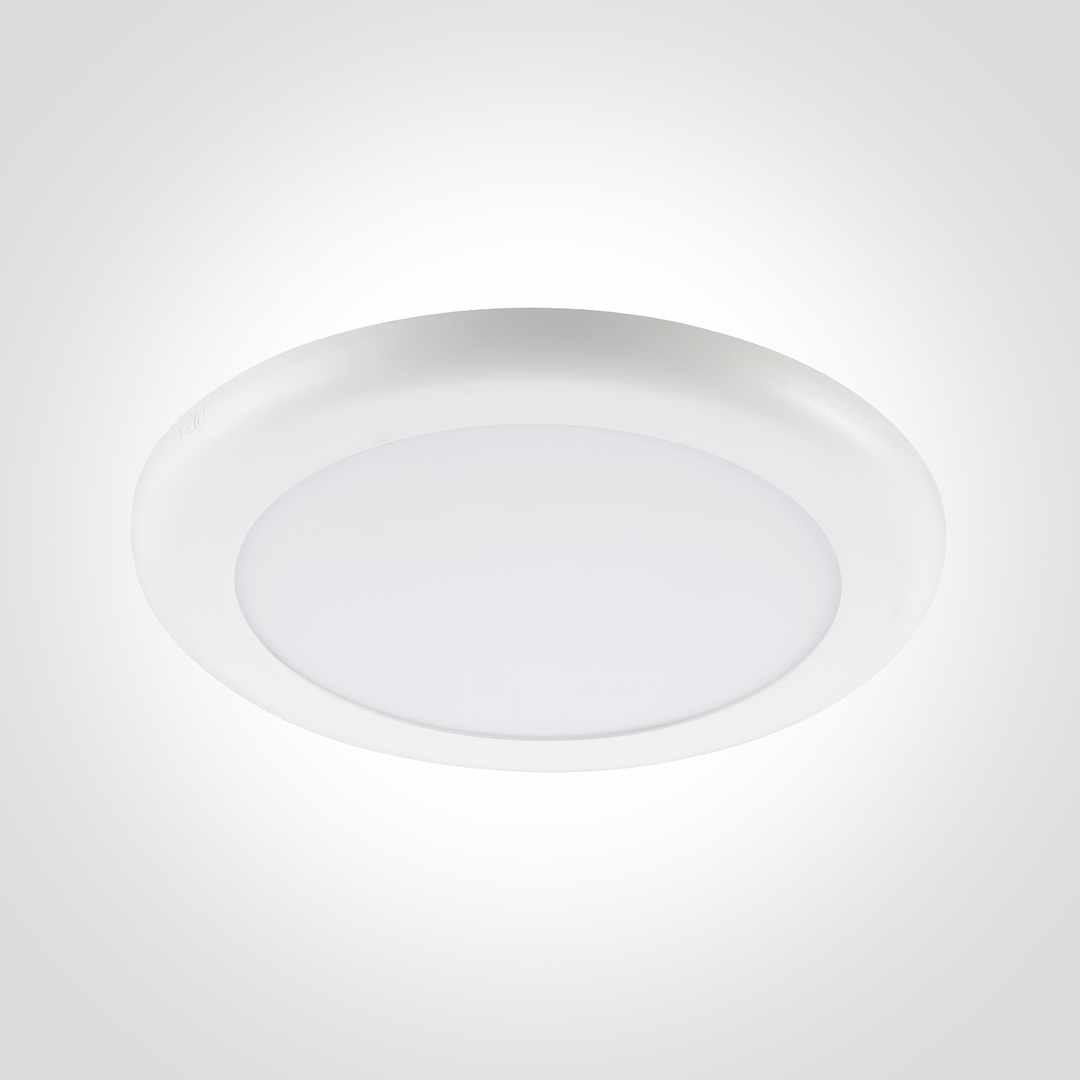

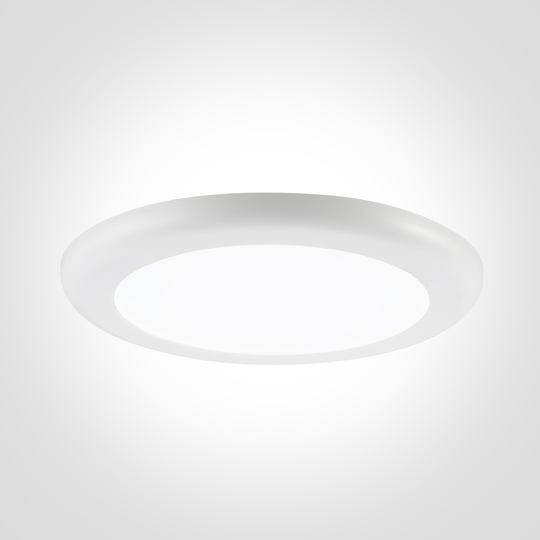

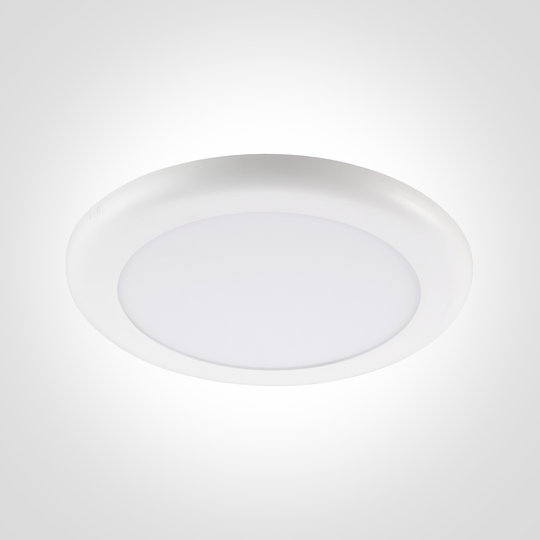

Like a chameleon, Daintree Ultra Thin changes its form to suit your needs. Use it as a high output downlight, with adjustable clips to fit any cutout from 65mm - 205mm. For apartments with low ceilings or LED downlight restrictions, the fitting can be surface mounted to act as a slim oyster light. It sure packs a punch, with up to 1600 lumen output.
-

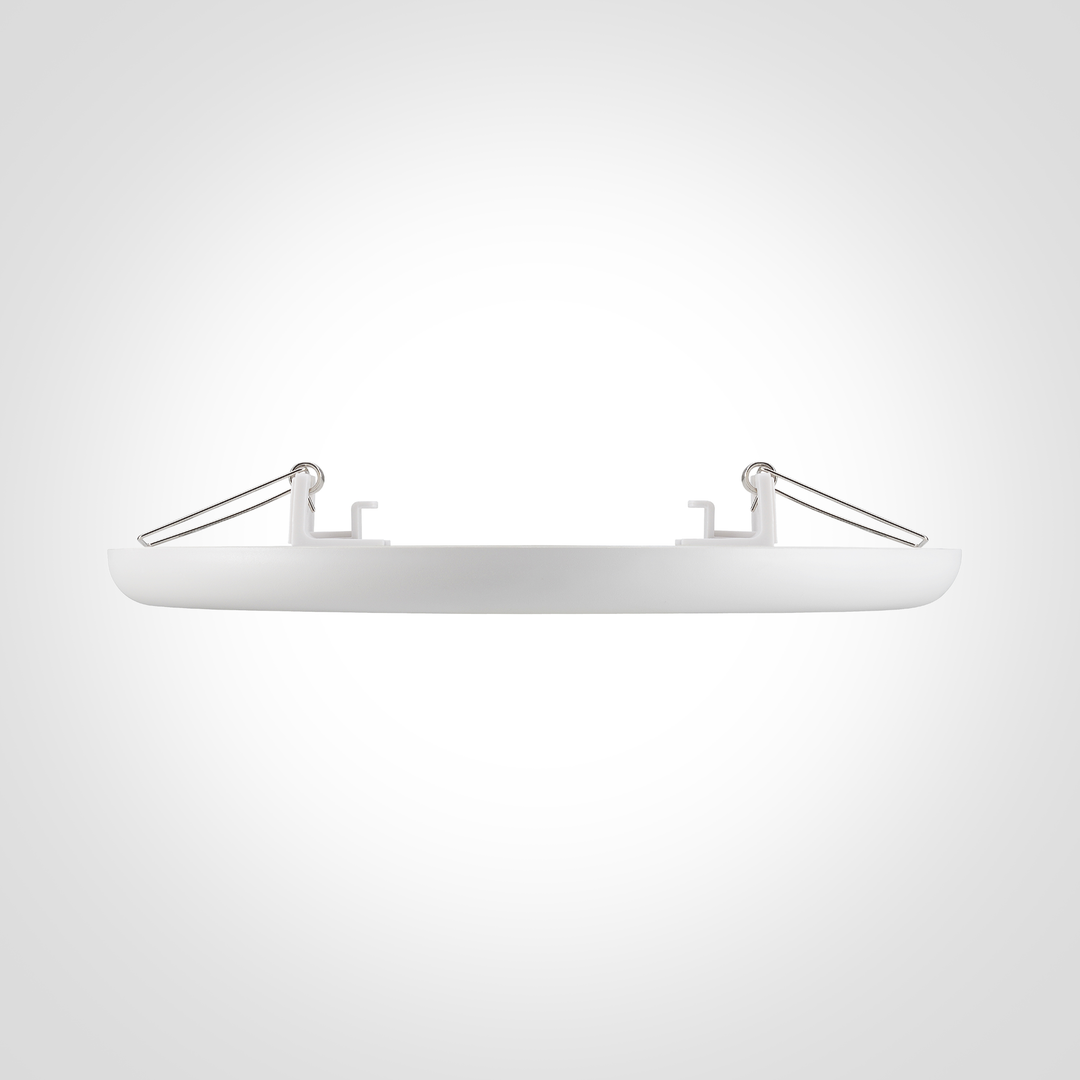

16mm height: the ultrathin design is suited for low concrete ceilings where there is less space in the ceiling cavity.
-

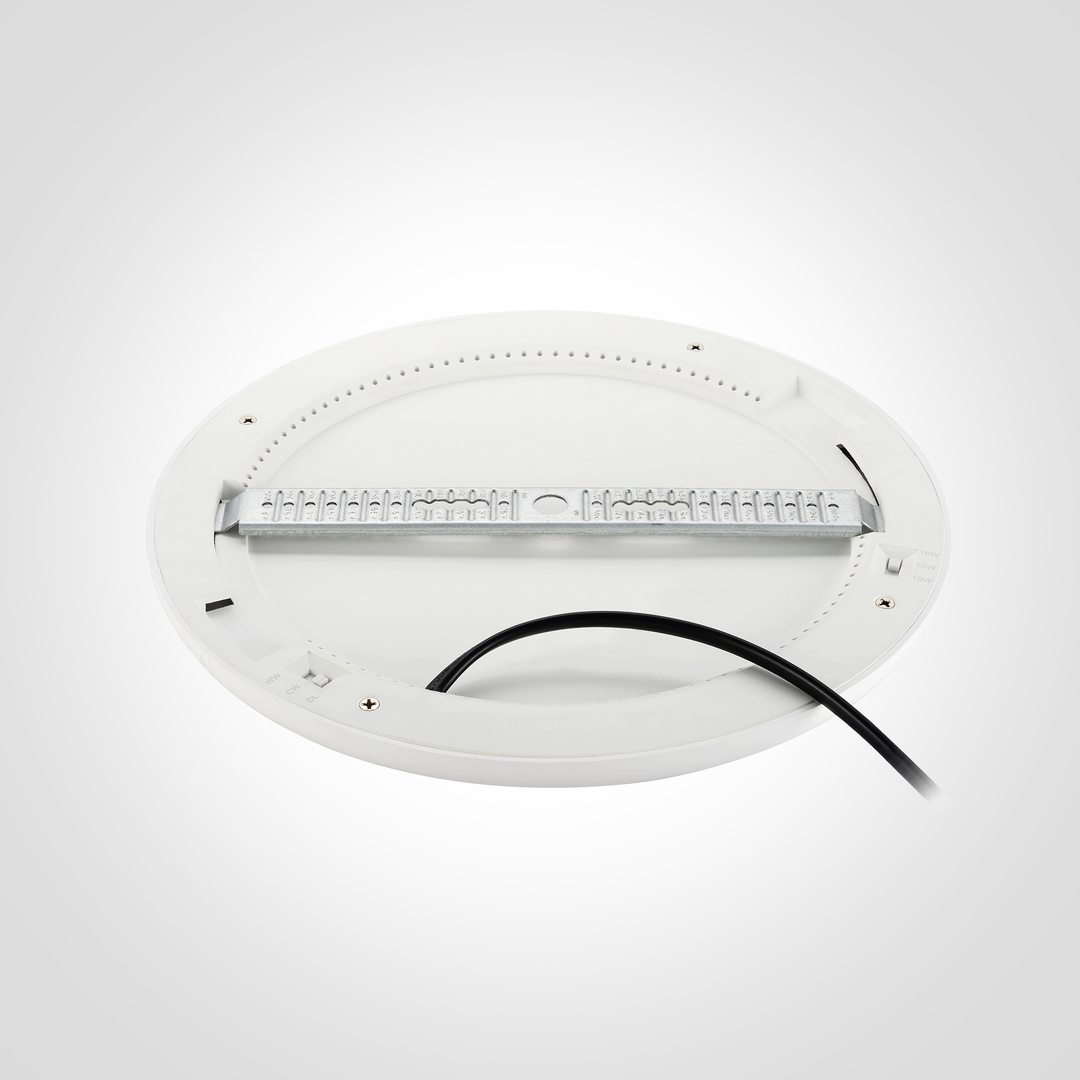

2 in 1 Design: it could be installed as an oyster, or as a recessed downlight by the extra clips accessories included.
-

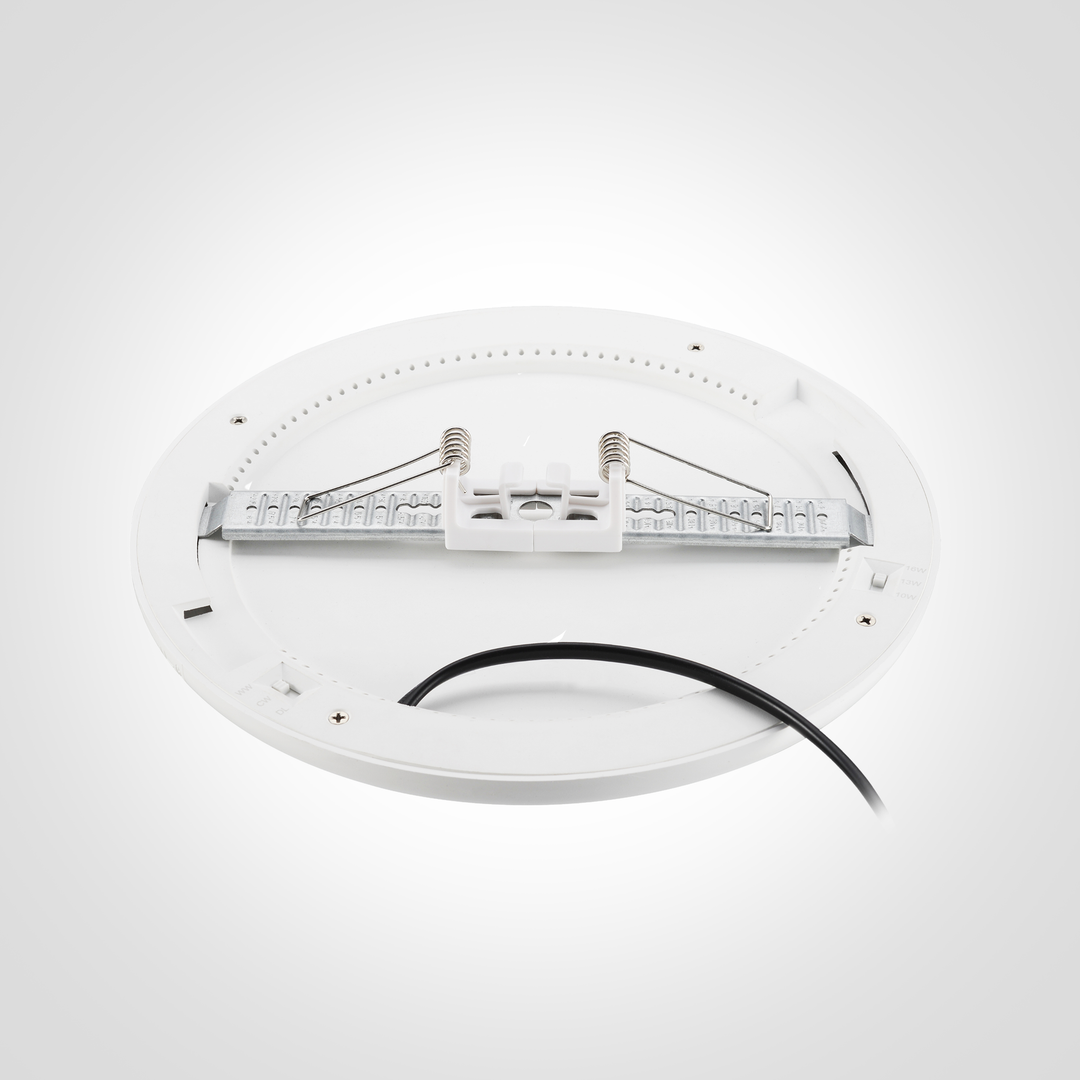

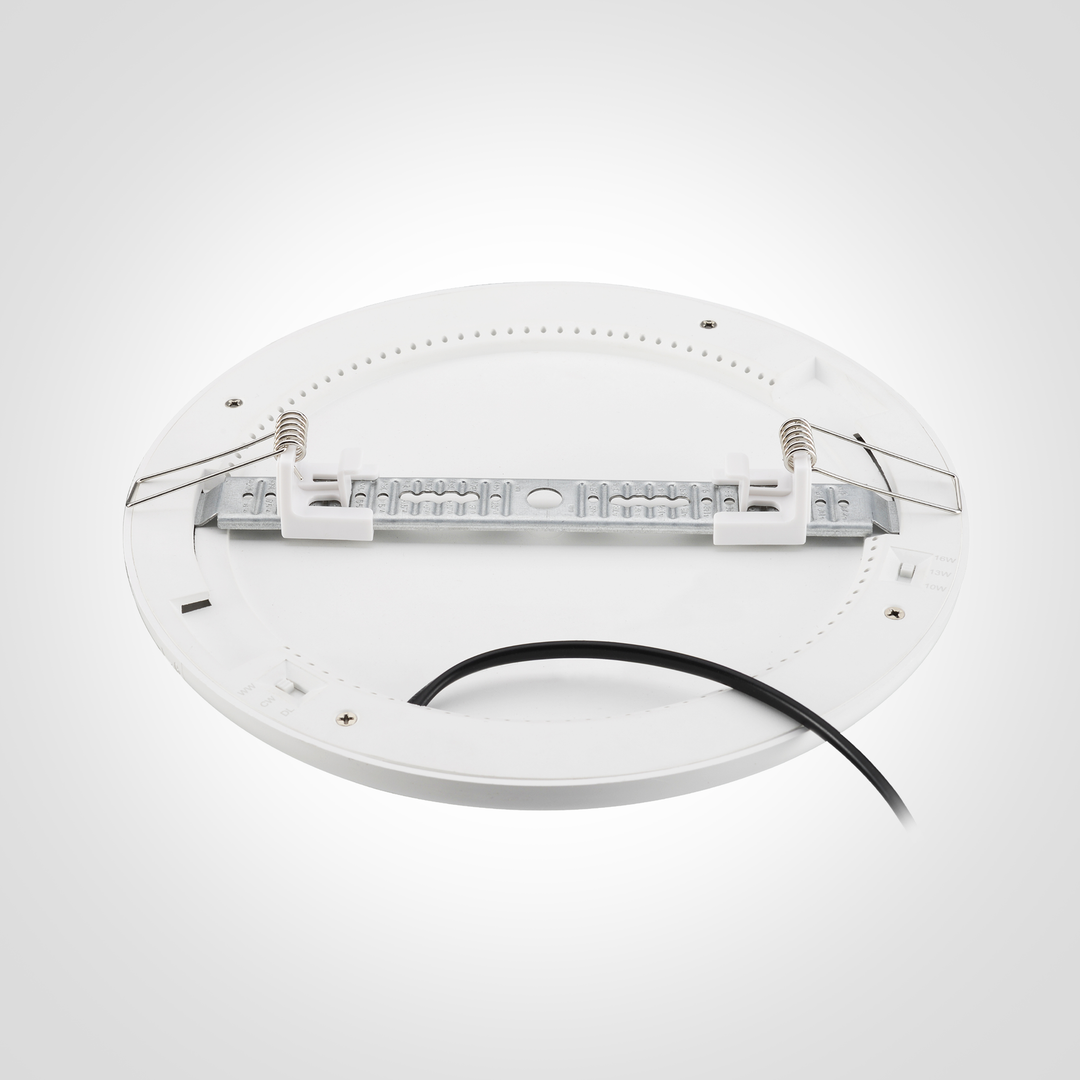

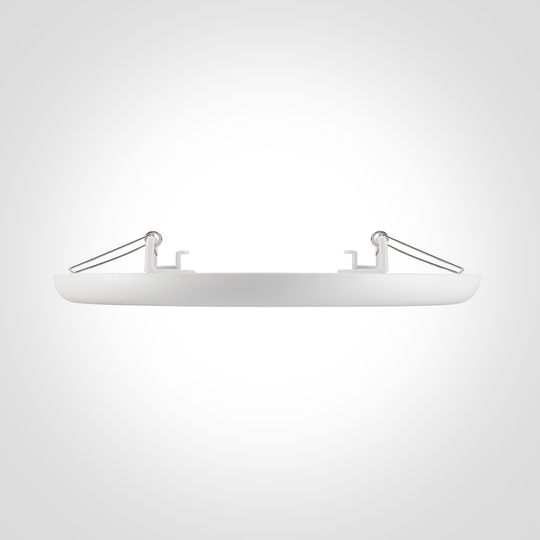

Adjustable cutout (65mm - 205mm): replace a wide range of existing downlights by adjusting the clips on the back of the downlight accordingly.
-
Internal dip switches: select between 10W/ 13W/ 16W and 3000K/ 4000K/ 5700K depending on the intended application.
- Produce up to 1600 lumens even when the cutout is only 65mm.
- Keep plenty on hand with your Elekzon Bulk Purchase Discount
Technical Specifications
Wattage: |
10/13/16W |
Lumens: |
1680/1810/1680LM |
Efficacy: |
110lm/W |
CCT: |
3000K / 4000K / 5700K |
Colour Rendering Index (CRI): |
>80 |
Beam Angle: |
120° |
Cutout: |
Φ65~205mm |
Power factor: |
>0.9 |
LED Chip Type: |
SMD Chip |
IP Rating: |
IP20 (for front face) |
Dimmable: |
non-Dimmable
|
Driver Type: |
Constant current, non-dimmable LED driver
|
Lifespan: |
50,000Hrs |
IC Rating: |
IC-4 |

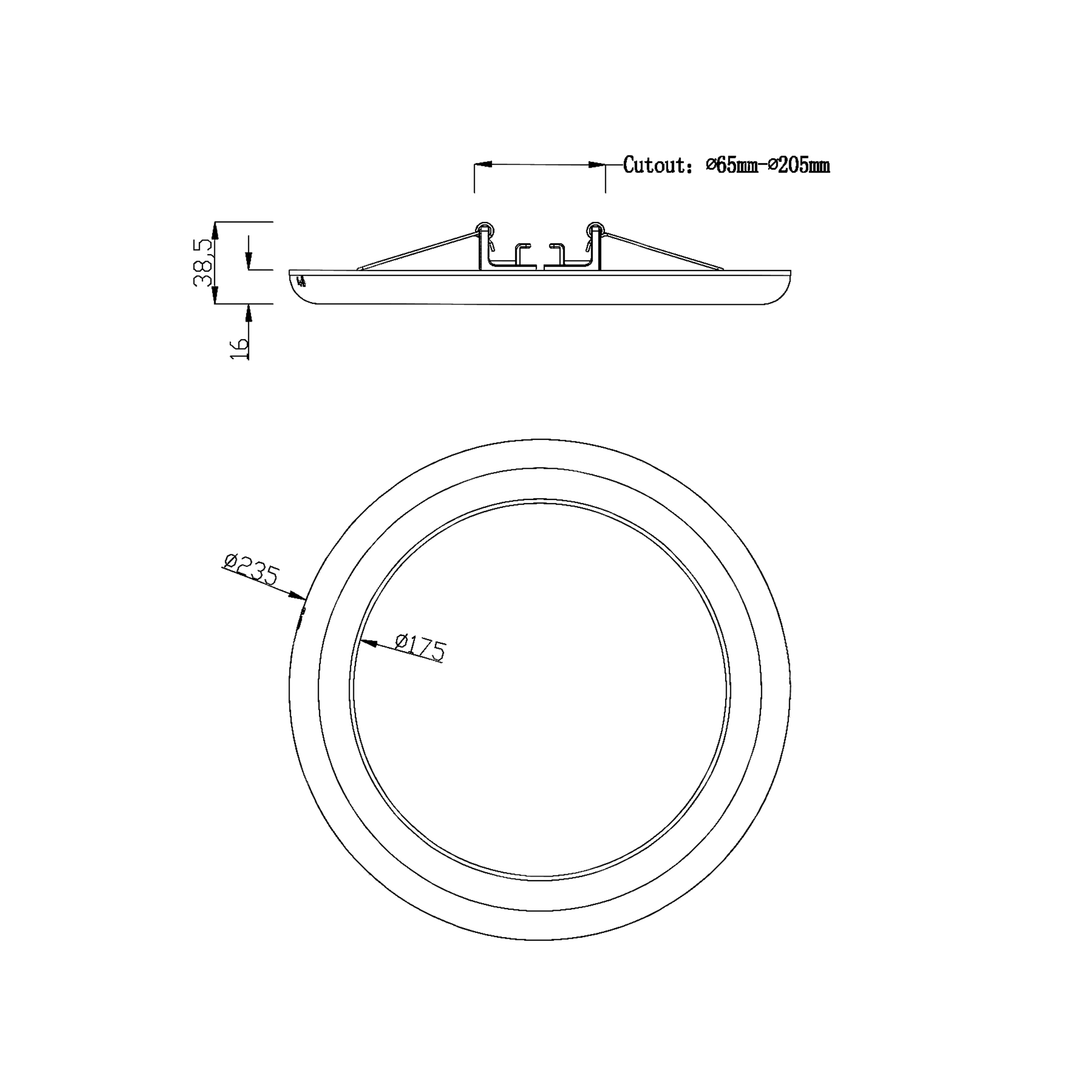

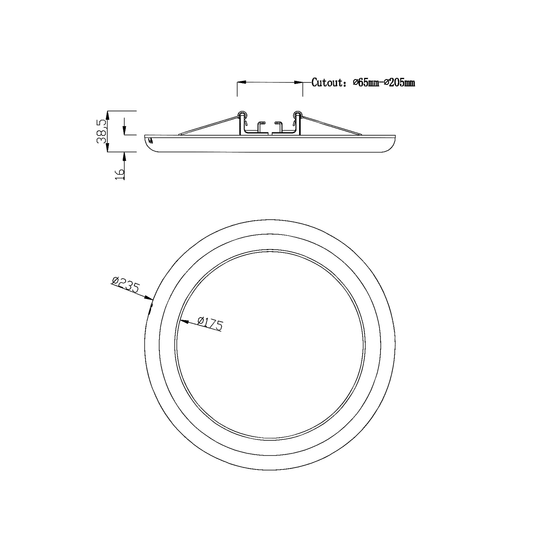

Dimension: |
D235xH16mm; |
Input Voltage: |
240V |
Operating Ambient temp: |
-20° to 40°
|
Electrical classification: |
Class II |
Warranty: |
3 years |
