Name: Large Format Downlight Daintree 106
Brand: Elekzon
SKU: EDL106-5_TC_WH
Price: 41.0 AUD
Availability: OutOfStock

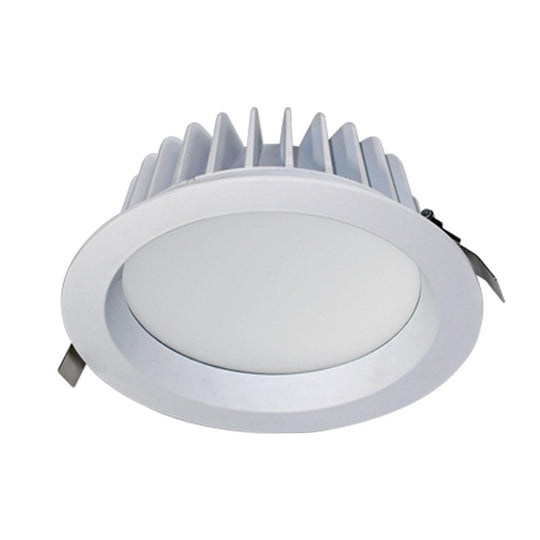

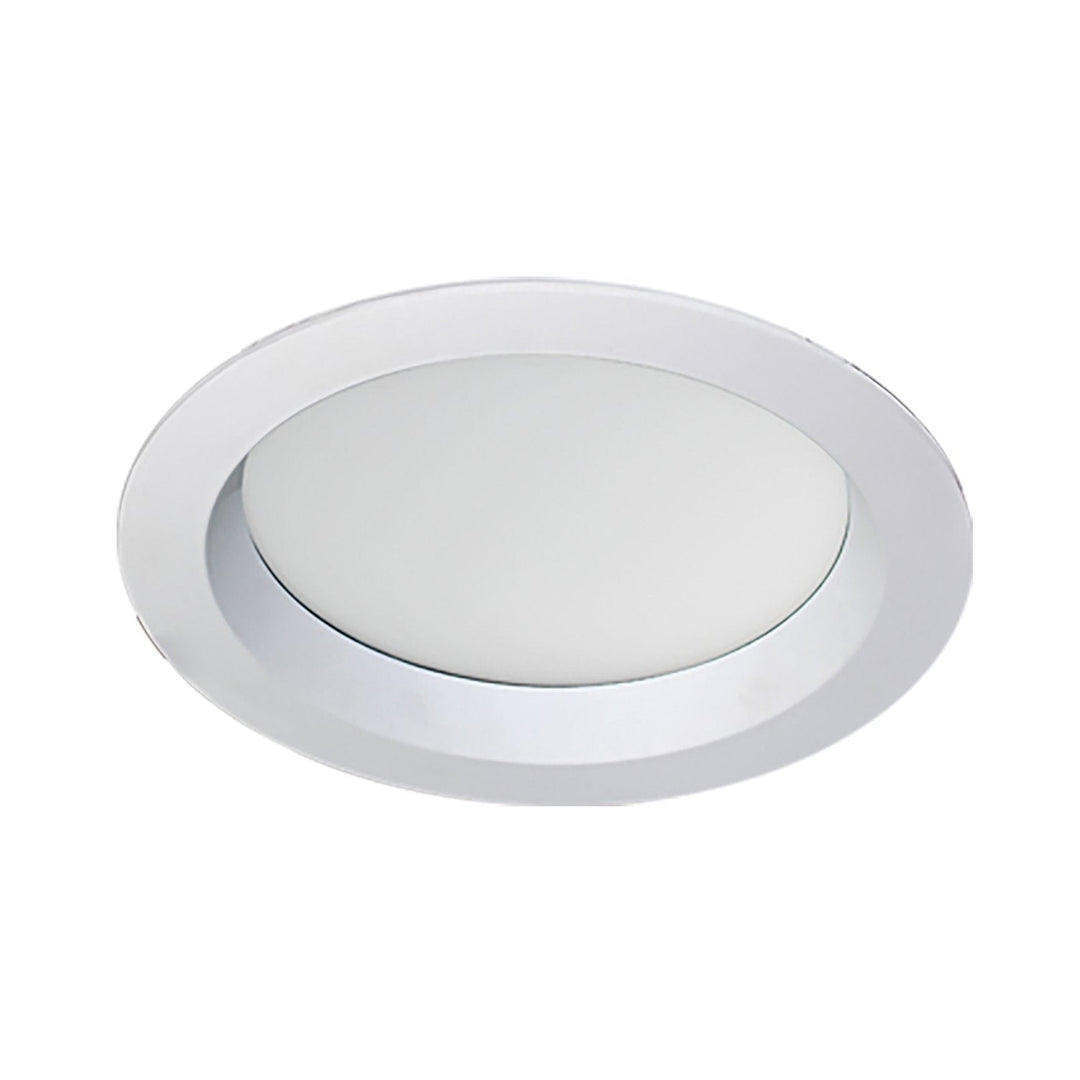

DAINTREE 106 -18W/25W/35W-IP54-LED-Downlight - CCT Tricolour-Changeable - 145mm/165mm/200mm-Cutout

Upgrade your lighting game to a new level with the high-performance Daintree 106 large format downlight! If you're tired of dim and uninspiring lighting, our Daintree 106 is the perfect solution. With a full cut-out of 200mm and a wide beam angle, this innovative LED downlight offers exceptional brightness and coverage, making it an ideal choice for shared spaces such as offices, apartment corridors, or commercial kitchens.

specifications

Wattage:	18 / 25 / 35W
Lumens:	1700 / 2350 / 3300lm
Efficacy:	85lm/W
CCT:	3000K / 4000K / 6000K
Colour Rendering Index (CRI):	>80
Beam Angle:	90°
Cutout:	Φ145 / 165 / 200mm
Power factor:	>0.9
LED Chip Type:	SMD Led chips
IP Rating:	IP54 (front face)
Dimmable:	Non dimmable
Driver Type:	Externalconstant current
Lifespan:	50,000Hrs
IC Rating:	IC-4
Lead Type:	1.2m Flex & Plug
Input Voltage:	240V
Operating Ambient temp:	-15°to 45°
Electrical classification:	Class II
Warranty:	5 years

material specifications

0	Material:Die-cast Aluminium Body
1	Paint Finish:Powder coated matt white finish
2	Reflector Material:poly-carbonate diffuser
3	Fixture Options:Fixedonly

downloads

[{"id":24843198693476,"title":"106-3 18W 1550 \/ 1650 \/ 1700lm Φ145 mm","option1":"106-3 18W 1550 \/ 1650 \/ 1700lm Φ145 mm","option2":null,"option3":null,"sku":"EDL106-3_TC_WH","requires_shipping":true,"taxable":true,"featured_image":{"id":33388209275050,"product_id":2648427167844,"position":1,"created_at":"2022-03-25T15:09:35+11:00","updated_at":"2022-07-01T11:16:40+10:00","alt":"DAINTREE 106 -18W\/25W\/35W-IP54-LED-Downlight - CCT Tricolour-Changeable - 145mm\/165mm\/200mm-Cutout","width":1500,"height":1500,"src":"\/\/elekzon.com.au\/cdn\/shop\/products\/DAINTREE106-LED-Downlight01_jpeg.jpg?v=1656638200","variant_ids":[24843198693476,24843198759012]},"available":false,"name":"Large Format Downlight Daintree 106 - 106-3 18W 1550 \/ 1650 \/ 1700lm Φ145 mm","public_title":"106-3 18W 1550 \/ 1650 \/ 1700lm Φ145 mm","options":["106-3 18W 1550 \/ 1650 \/ 1700lm Φ145 mm"],"price":4100,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":"9354464000214","featured_media":{"alt":"DAINTREE 106 -18W\/25W\/35W-IP54-LED-Downlight - CCT Tricolour-Changeable - 145mm\/165mm\/200mm-Cutout","id":25730612822186,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/elekzon.com.au\/cdn\/shop\/products\/DAINTREE106-LED-Downlight01_jpeg.jpg?v=1656638200"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":24843198726244,"title":"106-4 25W 2100 \/ 2250 \/ 2350lm Φ165 mm","option1":"106-4 25W 2100 \/ 2250 \/ 2350lm Φ165 mm","option2":null,"option3":null,"sku":"EDL106-4_TC_WH","requires_shipping":true,"taxable":true,"featured_image":{"id":33388209307818,"product_id":2648427167844,"position":2,"created_at":"2022-03-25T15:09:35+11:00","updated_at":"2022-03-25T15:09:49+11:00","alt":"DAINTREE 106 -18W\/25W\/35W-IP54-LED-Downlight - CCT Tricolour-Changeable - 145mm\/165mm\/200mm-Cutout","width":1500,"height":1500,"src":"\/\/elekzon.com.au\/cdn\/shop\/products\/DAINTREE106-LED-Downlight02_jpeg.jpg?v=1648181389","variant_ids":[24843198726244]},"available":false,"name":"Large Format Downlight Daintree 106 - 106-4 25W 2100 \/ 2250 \/ 2350lm Φ165 mm","public_title":"106-4 25W 2100 \/ 2250 \/ 2350lm Φ165 mm","options":["106-4 25W 2100 \/ 2250 \/ 2350lm Φ165 mm"],"price":4500,"weight":250,"compare_at_price":null,"inventory_management":"shopify","barcode":"9354464000238","featured_media":{"alt":"DAINTREE 106 -18W\/25W\/35W-IP54-LED-Downlight - CCT Tricolour-Changeable - 145mm\/165mm\/200mm-Cutout","id":25730612789418,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/elekzon.com.au\/cdn\/shop\/products\/DAINTREE106-LED-Downlight02_jpeg.jpg?v=1648181389"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":24843198759012,"title":"106-5 35W 3000 \/ 3150 \/ 3300lm Φ200 mm","option1":"106-5 35W 3000 \/ 3150 \/ 3300lm Φ200 mm","option2":null,"option3":null,"sku":"EDL106-5_TC_WH","requires_shipping":true,"taxable":true,"featured_image":{"id":33388209275050,"product_id":2648427167844,"position":1,"created_at":"2022-03-25T15:09:35+11:00","updated_at":"2022-07-01T11:16:40+10:00","alt":"DAINTREE 106 -18W\/25W\/35W-IP54-LED-Downlight - CCT Tricolour-Changeable - 145mm\/165mm\/200mm-Cutout","width":1500,"height":1500,"src":"\/\/elekzon.com.au\/cdn\/shop\/products\/DAINTREE106-LED-Downlight01_jpeg.jpg?v=1656638200","variant_ids":[24843198693476,24843198759012]},"available":true,"name":"Large Format Downlight Daintree 106 - 106-5 35W 3000 \/ 3150 \/ 3300lm Φ200 mm","public_title":"106-5 35W 3000 \/ 3150 \/ 3300lm Φ200 mm","options":["106-5 35W 3000 \/ 3150 \/ 3300lm Φ200 mm"],"price":8802,"weight":250,"compare_at_price":9682,"inventory_management":"shopify","barcode":"9354464000252","featured_media":{"alt":"DAINTREE 106 -18W\/25W\/35W-IP54-LED-Downlight - CCT Tricolour-Changeable - 145mm\/165mm\/200mm-Cutout","id":25730612822186,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/elekzon.com.au\/cdn\/shop\/products\/DAINTREE106-LED-Downlight01_jpeg.jpg?v=1656638200"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Model

Watts

Lumens

Efficacy

CCT

Dimensions

Adjustable

IP Rating

Elekzon Daintree 106-3 Downlight 106-3

18W

1550 / 1650 / 1700 lm

85 / 90 / 95 lm/W

3000K / 4000K / 6000K

Φ145mm CutOut

Φ162mm x 82mm Height

Not Adjustable

IP54 Front Face

106-4

25W

2100 / 2250 / 2350 lm

85 / 90 / 95 lm/W

3000K / 4000K / 6000K

Φ165mm CutOut

Φ193mm x 94mm Height

Not Adjustable

IP54 Front Face

106-5

35W

3000 / 3150 / 3300 lm

85 / 90 / 95 lm/W

3000K / 4000K / 6000K

Φ200mm CutOut

Φ230mm x 106mm Height

Not Adjustable

IP54 Front Face
