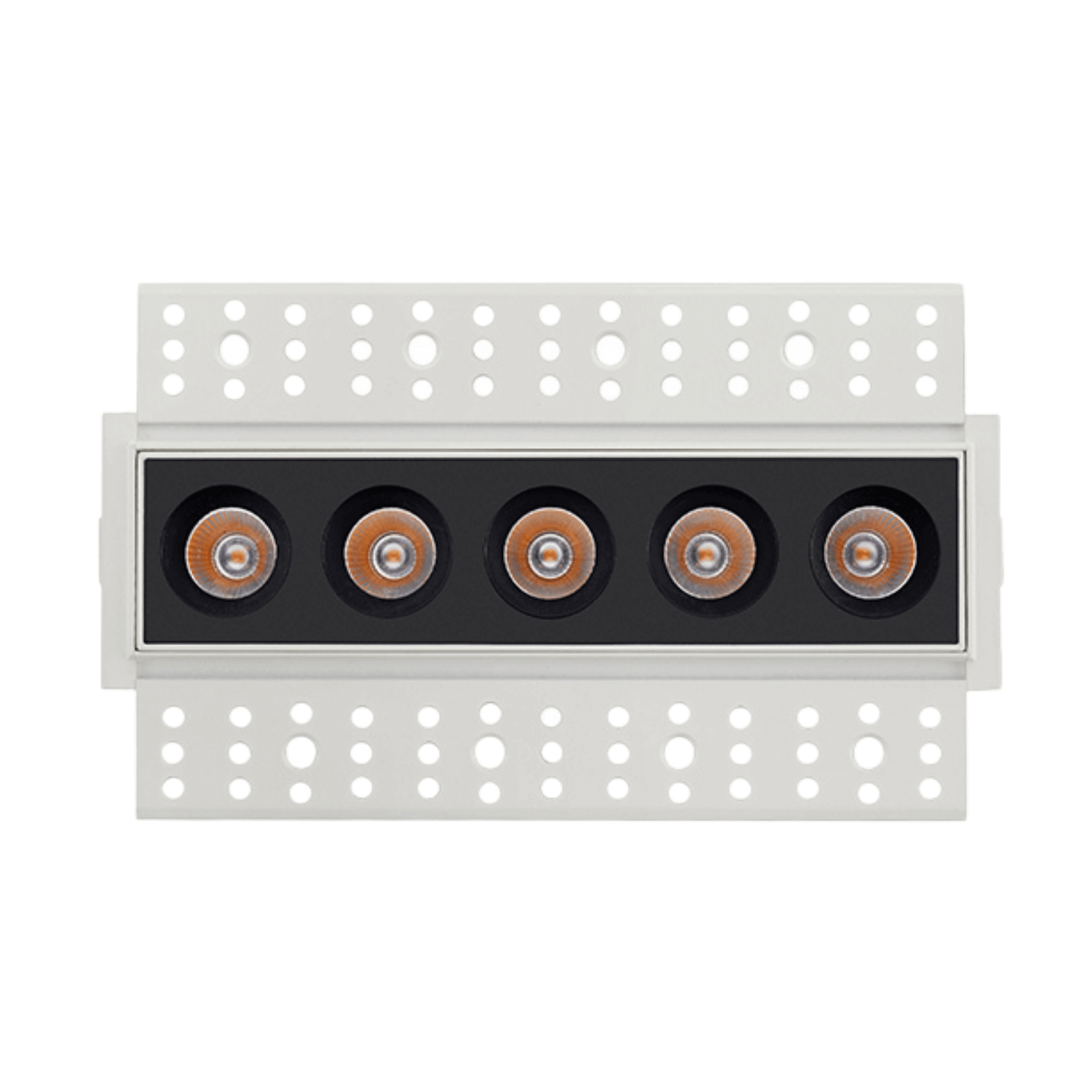

10W Low Profile Linear Downlight Athens

The recessed linear downlight is suitable for narrow or low profile ceiling, which includes 5 light spots, 5x2w in total.
The linear downlight has white aluminium trim, deep recessed 5pcs mini light spots
The gimble Athens linear downlight including recessed light spots, it could be adjusted to the direction you want.
The trimless version of Athens allows you to fix the frame in advance, and install the lighting body to the frame. The frame could be unvisible after the painting of the ceiling.
The aluminium heat sink designed in streamline to insure perfect heat transfer
The dimension of the adjutable trimless linear downlight is only 55mm high, which is suitable for the ceiling with limited space
It is the adjustable version of the trimless linear downlight, it can be adjusted to about 25 degree horizontally, which can highlight the areas as per your requirement.
it is the trimless version with rear frame, which is about 1cm from the edge, another options for your project installation.
The fixed downlight is trimless, its height is only 48mm, which is for low profile ceiling
The 10w linear downlight composed with 5pcs mini linear downlight spots. The light is in high CRI≥90, and double anti-glare with UGR<6.
The gimble downlight has a width of only 56mm, which is suitable for the place of a narrow ceiling.
The gimble downlight could be adjusted from 0-25 degree horizontally, which is perfect to highlight the area as per your requirement.
The fixed downlight only with a height of 35mm, which is a perfect option for the low profile ceiling
Athens series has a wide range of options for powers, 2w, 4w, 6w, 10w and 20w to meet various of your requirement.

  • Fast Delivery

    Free standard delivery on orders over $500! Same Day Dispatch*

  • Free Returns

    30-day free returns are on us!*

  • Bulk Discounts

    Order more & save! Massive savings on bulk orders and cartons.

Product Description

Model Comparison
Model Watts Lumens Dimming CCT Dimensions Adjustable IP Rating
CES8105M-G2 10W 600 lm Dimmable 2700K/3000K/3500K/4000K

140*35mm CutOut

L146*W43*H41mm

 Fixed
 IP20


CES8205M-G2
 10W 600 lm Dimmable 2700K/3000K/3500K/4000K

152*50mm CutOut

L159*W56*H45mm

 Adjustable IP20

CES8105MW-G2-A (front trimless frame)

 10W 600 lm Dimmable 2700K/3000K/3500K/4000K

150*48mm CutOut

L148*W88*H46mm

 Fixed
 IP20


CES8205MW-G2-A (front trimless frame)

 10W 600 lm Dimmable 2700K/3000K/3500K/4000K

150*55mm CutOut

L148*W95*H46mm

 Adjustable IP20

CES8105MW-G2-B (rear trimless frame)

 10W 600 lm Dimmable 2700K/3000K/3500K/4000K

150*48mm CutOut

L148*W88*H46mm

 Fixed
 IP20


CES8205MW-G2-B (rear trimless frame)

 10W 600 lm Dimmable 2700K/3000K/3500K/4000K

150*55mm CutOut

L148*W95*H46mm

 Adjustable IP20

Downloads
  • Coming soon!
