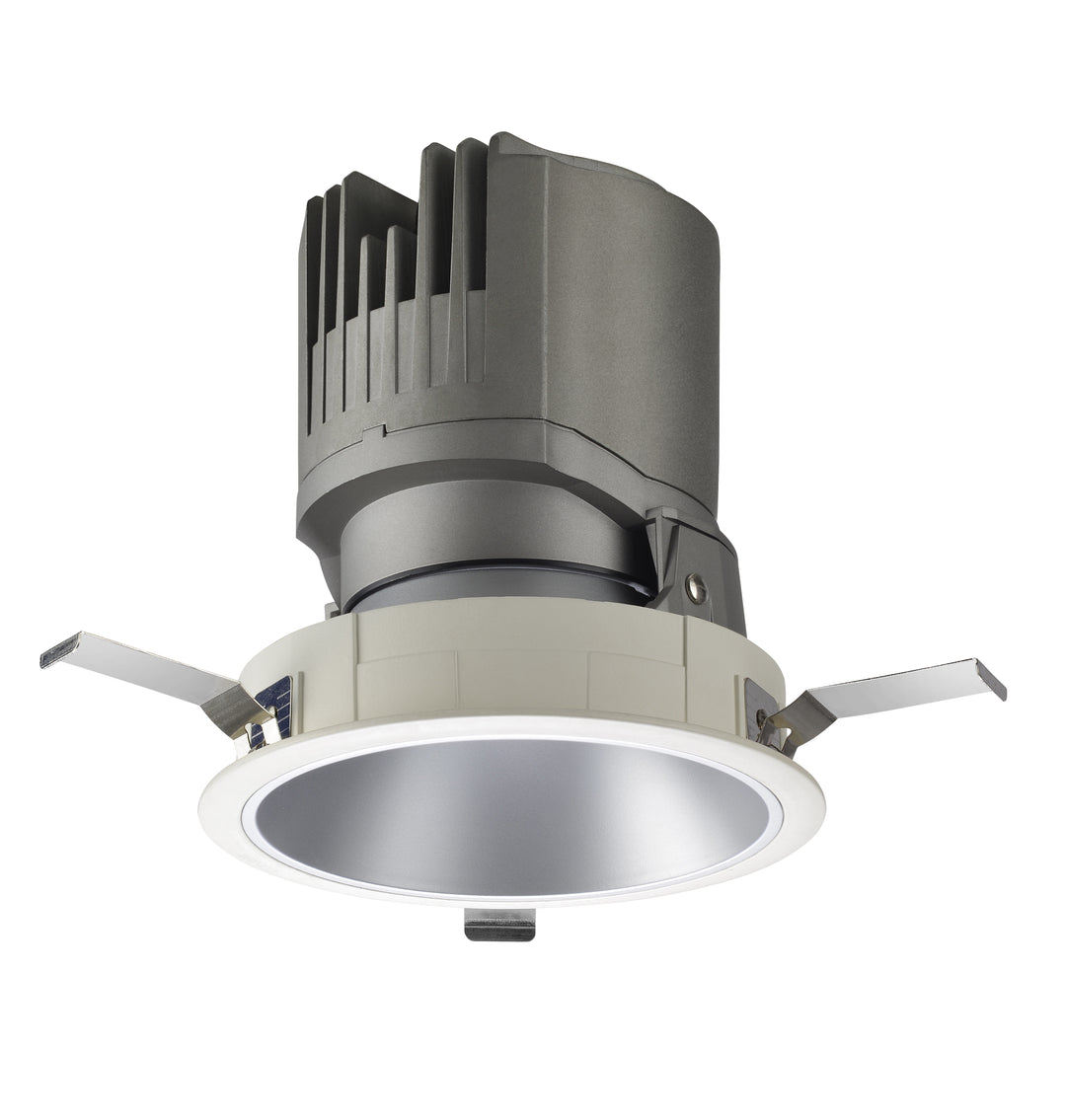

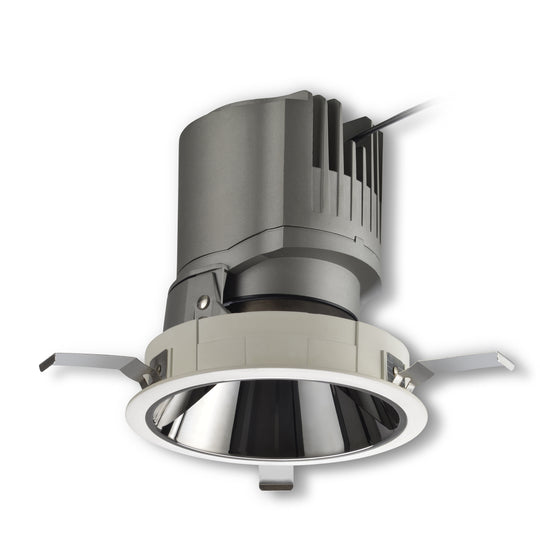

IP65 Las Vegas 150mm Architectural Recessed Downlight by CDN

IP65 Las Vegas 150mm Architectural Recessed Downlight by CDN

The Las Vegas series expands its offering with the introduction of the IP65-rated 150mm downlight. This versatile fixture is specifically designed to thrive in 10-20 mm thick ceiling board and high-humidity environments, making it ideal for applications such as exterior canopies, lobbies, spas, and indoor swimming pools.

Read More


  • In stock, ready to ship
  • Made To Order
Shipping: 4 to 8 weeks delivery lead time - Details

specifications

Wattage: 30W / 35W / 40W
Lumens: 1200 ~ 3200 lm
Efficacy: 27 ~ 108 lm/W
CCT: 2700K / 3000K / 3500K/ 4000K
Colour Rendering Index (CRI): Ra≥95
Tilt Options: Fixed / Adjustable
Beam Angle: 12°/24°/36°/50°

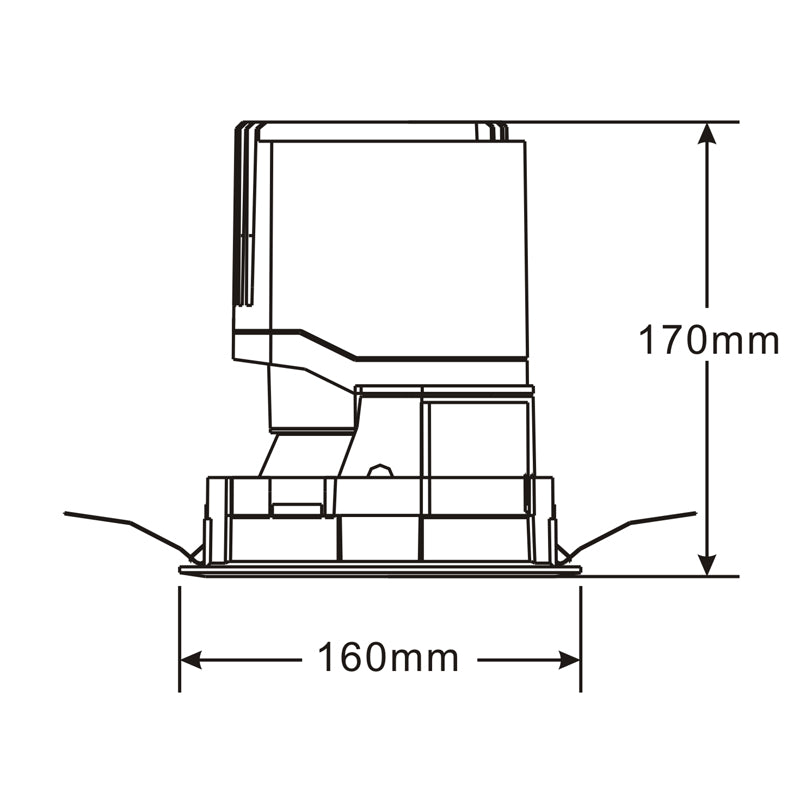

Cutout: Φ150mm
Power factor: >0.9
LED Chip Type:COB
IP Rating: IP65
Dimmable: Trailing edge dimming (0-10V, DALI, Casambi Smart Lighting control available)
Driver Type: : Constant current remote LED driver included. Driver can be ON/OFF, Triac dimming, 0/1-10V dimming or DALI
Lifespan: 50,000Hrs
IC Rating: IC-4
Lead Type: Flex & Plug
Input Voltage: 220V ~ 240V
Operating Ambient temp: -15 to 45 degree
Electrical classification: Class II
Warranty: 3 years
